Description
High-quality compressed air plays an essential role in modern dentistry. Dental compressors can supply air for dental units, handpieces and the drying of dental materials, as well as supporting the cooling, cleaning and sterilising of dental tools.

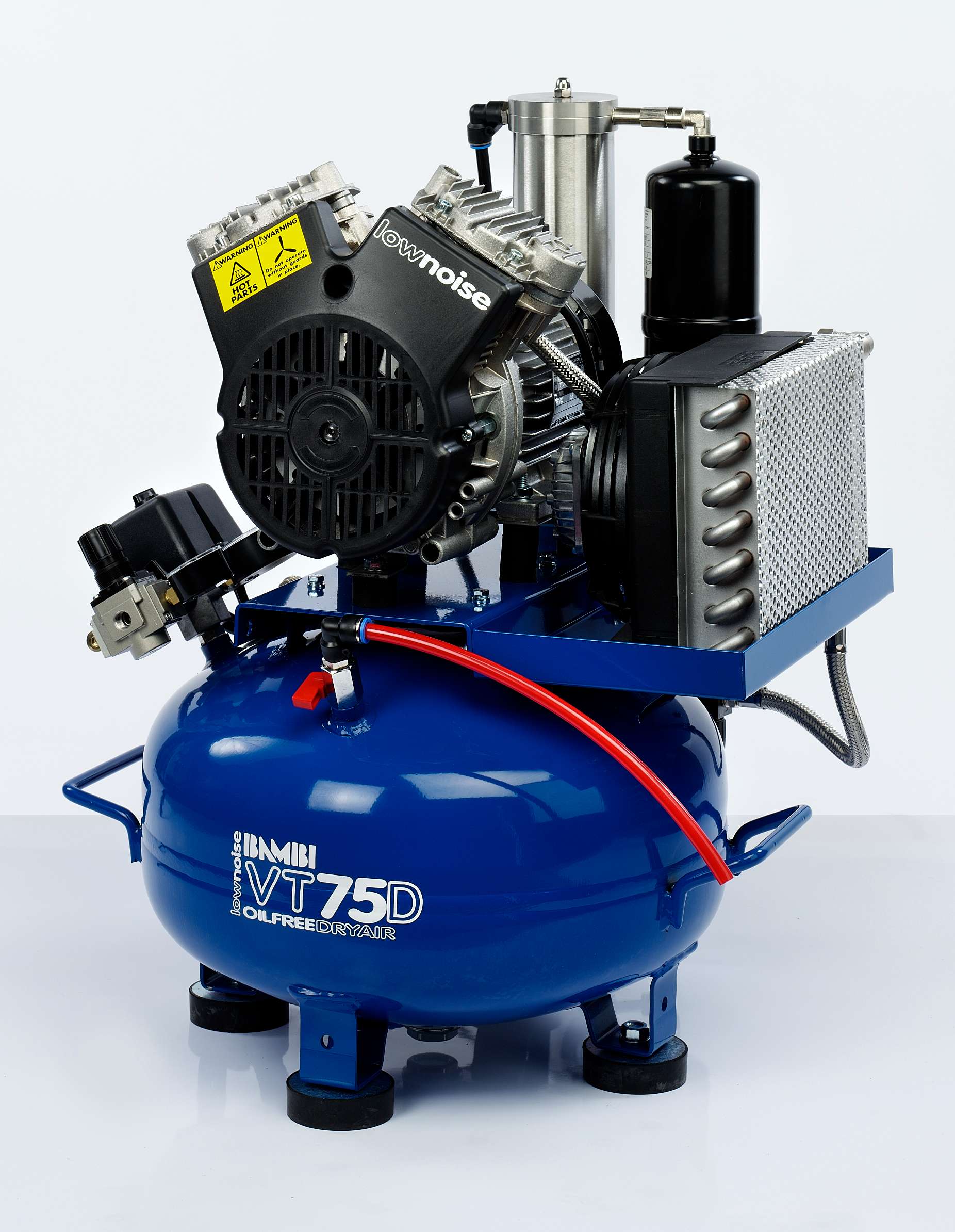

The Bambi VT75D has been engineered specifically around the need for reliable, oil-free compressed air. The VT range uses an induction system and harmonic anti-vibration mountings to help keep running noise levels low, while its design incorporates fewer moving parts than a conventional articulating piston compressor.
As a D model, the VT75D also incorporates an integral dryer. Moisture naturally present in atmospheric air can condense when compressed and collect within the air receiver. Bambi’s desiccant dryer technology can reduce the dew point to as low as -40°C, helping to inhibit microbial growth while significantly reducing condensate formation and maintenance requirements.
For practices looking for a Bambi dental compressor in Braintree, Essex or London, Dental Hygienics can advise on product selection, installation and ongoing compressor support.
Features and Benefits
Oil-Free Dental Air
Oil-free compressor technology helps provide the high-quality, contamination-free compressed air required for dental applications.
Integrated Desiccant Dryer
The VT75D incorporates a dryer using desiccant technology. Bambi states that its VT dryer can reduce the dew point to as low as -40°C, helping inhibit microbial growth and reduce condensate formation.
Internally Coated Air Receiver
The 24-litre receiver is internally protected with an anti-corrosion coating, helping reduce the risk of internal corrosion and air contamination.
Engineered for Low Running Noise
Bambi’s VT range uses an induction system and harmonic anti-vibration mountings to help keep running noise levels low.
Soft Start Solenoid Valve
The VT range incorporates a soft start solenoid valve as part of its engineering design.
British Design and Manufacture
Bambi air compressors are designed, built and quality tested in Britain.
Specifications
| Specification | VT75D |
|---|---|
| Free air delivery @ 5 bar | 58 L/min |
| Motor power | 0.75 HP / 0.55 kW |
| Tank size | 24 litres |
| Maximum pressure | 8 bar |
| Noise level | 74 dB(A) |
| Current | 5 amps |
| Voltage | 220-240V |
| Connection | UK plug |
| Weight | 40 kg |
| Dimensions (H × W × D) | 64 × 52 × 49 cm |
The stated noise level has been independently tested by TÃœV SÃœD. A three-phase 400V version is available.
Recommended Surgery Capacity
Bambi sizing guide: 1 dental surgery.
Bambi’s sizing guide is based on typical practice air usage. Actual requirements should always be assessed before installation because equipment such as handpiece cleaners, washer disinfectors and air abrasion systems may create additional air demand.
HTM 2022 Guidance
For practices working towards HTM 2022 requirements, Bambi states that its VT and VTS oil-free compressors with dryers are compliant when installed with the optional additional downstream breathing-air and bacterial filters.
The complete dental air system should therefore be considered when specifying the compressor rather than treating the compressor alone as the basis for compliance.
Warranty and Support
Bambi provides a 2-year warranty on the compressor, subject to terms and conditions, together with a 5-year warranty on the air receiver.
Dental Hygienics provides the added reassurance of a Bambi-authorised installation service carried out by Bambi-trained engineers. We can support your practice with compressor selection, professional installation and ongoing servicing and maintenance.
Pricing and Options
Pricing is available on request.
Contact Dental Hygienics for a quotation based on your practice requirements, installation and required configuration.
Optional downstream breathing-air and bacterial filters can be specified where required, including when configuring the system for HTM 2022 compliance.
Why Choose Dental Hygienics?
Choosing the right dental compressor involves more than comparing specifications.
As a Bambi-authorised installer with Bambi-trained engineers, Dental Hygienics can help you select an appropriate compressor for the air requirements of your practice and install it correctly.
We provide support for dental practices requiring:
- Bambi dental compressor supply
- Dental compressor installation
- Dental compressor servicing
- Dental compressor maintenance
- Advice on compressor sizing and configuration
- Ongoing engineering support
Whether your practice is based in Braintree, elsewhere in Essex or London, speak to our team about your dental compressed air requirements.
Frequently Asked Questions
How many surgeries is the Bambi VT75D suitable for?
Bambi’s sizing guide positions the VT75D for 1 dental surgery. Actual equipment air demand should always be assessed before selecting a compressor.
Is the Bambi VT75D oil-free?
Yes. The VT75D is part of Bambi’s oil-free dental compressor range.
Does the VT75D include a dryer?
Yes. The D suffix denotes a model with a dryer. Bambi’s VT dryer uses desiccant technology and can reduce the dew point to as low as -40°C.
Is the Bambi VT75D HTM 2022 compliant?
Bambi states that VT oil-free compressors with dryers are compliant with HTM 2022 when installed with optional additional downstream breathing-air and bacterial filters.
What is the VT75D free air delivery?
The VT75D provides 58 L/min free air delivery at 5 bar.
What size tank does the VT75D have?
The VT75D has a 24-litre internally coated air receiver.
Who can install a Bambi VT75D dental compressor?
Dental Hygienics is a Bambi-authorised installer, with Bambi-trained engineers available to provide professional dental compressor installation.
