Description

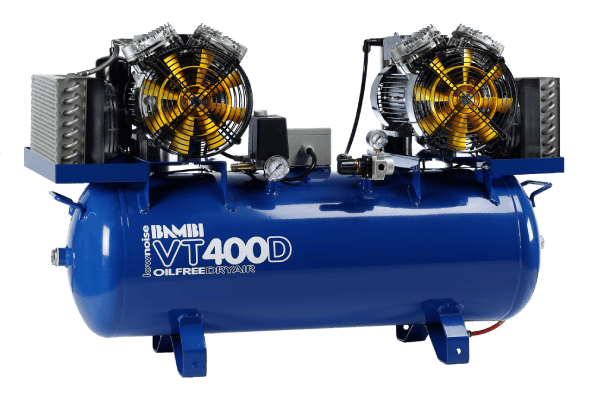

The VT400D sits at the top of Bambi’s current VT dental compressor range, which is designed to cover requirements from smaller practices through to large multi-surgery dental practices and busy dental laboratories.
Its 316 L/min free air delivery at 5 bar is combined with a 100-litre receiver and 4.0 HP / 3.0 kW motor.
The VT400D uses oil-free technology and incorporates an integral dryer. Bambi’s desiccant dryer technology can reduce the dew point to as low as -40°C, helping inhibit microbial growth and significantly reducing condensate formation and maintenance requirements.
Like the wider VT range, it also incorporates an induction system and harmonic anti-vibration mountings to help keep running noise levels low. The receiver is internally coated to reduce the risk of internal corrosion and air contamination.
Features and Benefits
Highest Air Delivery in the Current VT Range
Provides 316 L/min free air delivery at 5 bar.
Oil-Free Technology
Provides compressed air without oil contamination for demanding dental applications.
Integrated Desiccant Dryer
Can reduce the dew point to as low as -40°C, helping inhibit microbial growth and reduce condensate formation.
100-Litre Internally Coated Receiver
Provides substantial receiver capacity with internal anti-corrosion protection.
VT Engineering
Features include an induction system, harmonic anti-vibration mountings and soft start solenoid valve.
Designed, Built and Tested in Britain
Part of Bambi’s British-manufactured compressor range.
Specifications
| Specification | VT400D |
|---|---|
| Free air delivery @ 5 bar | 316 L/min |
| Motor power | 4.0 HP / 3.0 kW |
| Tank size | 100 litres |
| Current | 20 amps |
| Maximum pressure | 8 bar |
| Noise level | 80 dB(A) |
| Voltage | 220-240V |
| Connection | Hardwired |
| Weight | 107 kg |
| Dimensions (H × W × D) | 78 × 115 × 52 cm |
Noise level independently tested by TÃœV SÃœD. A three-phase 400V version is available. The unit needs to be hardwired into the main fuse box.
Recommended Surgery Capacity
Bambi sizing guide: 6 dental surgeries.
Bambi’s sizing guide is based on typical practice air usage. Exact equipment demand should always be assessed because other equipment within the practice may also require compressed air.
HTM 2022 Guidance
Bambi states that VT oil-free compressors with dryers are compliant with HTM 2022 when installed with optional additional downstream breathing-air and bacterial filters.
For a larger dental practice, assessing the total compressed air requirement is particularly important when specifying the appropriate compressor and system configuration.
Warranty and Support
The VT400D carries a 2-year compressor warranty, subject to terms and conditions, and a 5-year warranty on the air receiver.
Dental Hygienics provides professional installation as a Bambi-authorised installer, with Bambi-trained engineers available for installation and ongoing compressor support.
Pricing and Options
Pricing is available on request.
Contact Dental Hygienics for a quotation based on your practice’s compressor, configuration and installation requirements.
Optional downstream breathing-air and bacterial filters can be specified where required.
Why Choose Dental Hygienics?
Selecting a dental compressor for a larger multi-surgery practice requires careful consideration of the total compressed air demand.
Dental Hygienics combines specialist dental engineering experience with the reassurance of being a Bambi-authorised installer. Our Bambi-trained engineers can advise on product selection, provide professional installation and support the compressor through ongoing servicing and maintenance.
We work with dental practices requiring compressor solutions across Braintree, Essex and London.
Frequently Asked Questions
How many surgeries is the Bambi VT400D suitable for?
Bambi’s sizing guide positions the VT400D for 6 dental surgeries.
What is the VT400D air delivery?
The VT400D provides 316 L/min free air delivery at 5 bar.
What size receiver does the VT400D have?
It has a 100-litre internally coated air receiver.
Is the VT400D oil-free?
Yes. It forms part of Bambi’s oil-free VT dental compressor range.
Does the VT400D have an integral dryer?
Yes. The VT400D is a dryer-equipped model.
Does the VT400D need to be hardwired?
Yes. Bambi specifies a hardwired connection into the main fuse box.
Can Dental Hygienics install the Bambi VT400D?
Yes. Dental Hygienics is a Bambi-authorised installer with Bambi-trained engineers.
