Acteon X-Mind DC

Description

Key Features

• Reduced Exposure Time: The X-Mind DC significantly reduces exposure times when used with digital sensors, enhancing patient safety while maintaining image quality.
• Digital Compatibility: Fully compatible with digital imaging systems, allowing for seamless integration and high-resolution image capture.

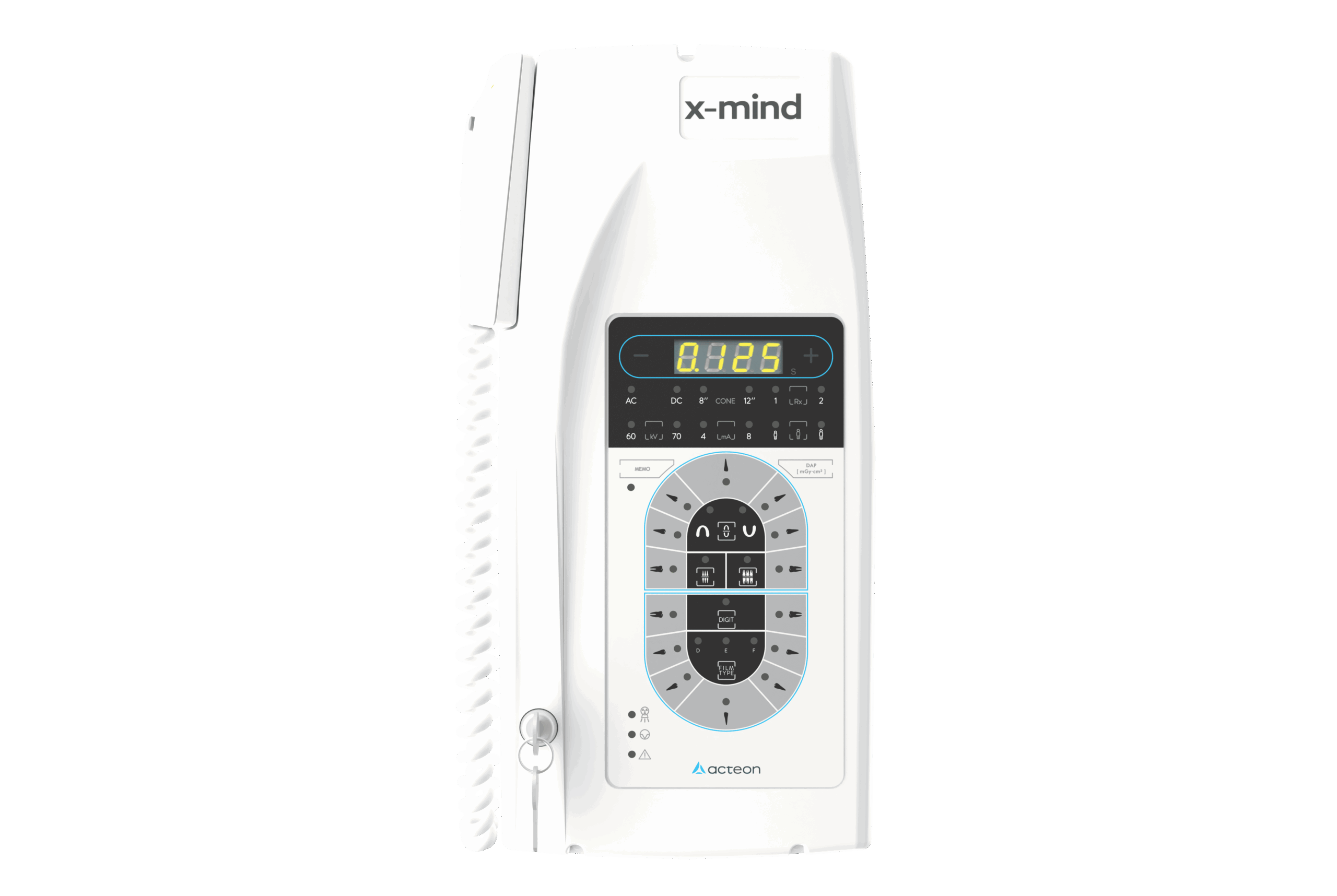

• Programmable User-Defined Timer: The microprocessor-controlled timer allows for user-defined and programmable exposure times, ideal for customizing settings based on specific diagnostic needs.
• High-Frequency Operation: Ensures the emission of high-quality radiation, resulting in clear, sharp images essential for accurate diagnosis.

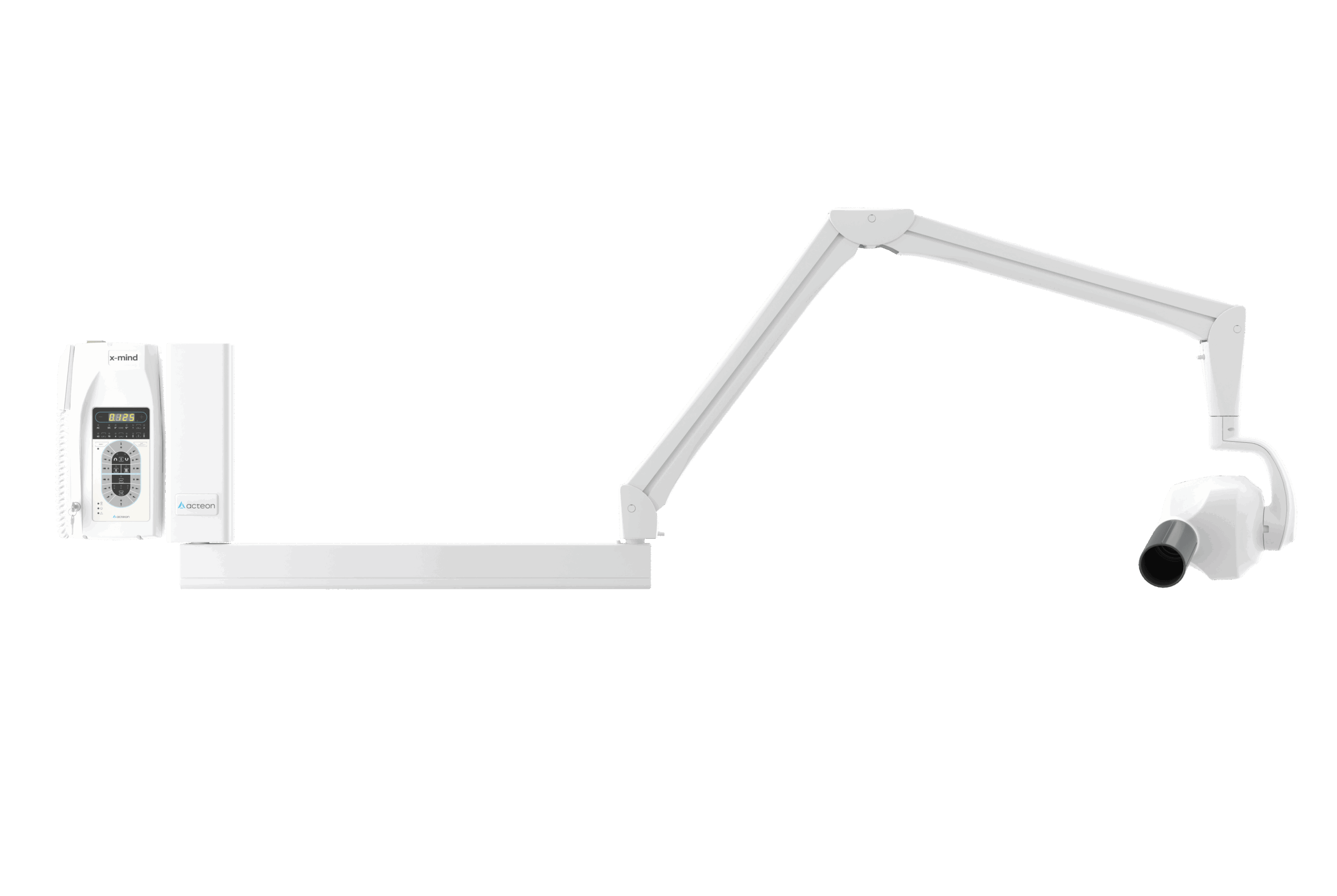

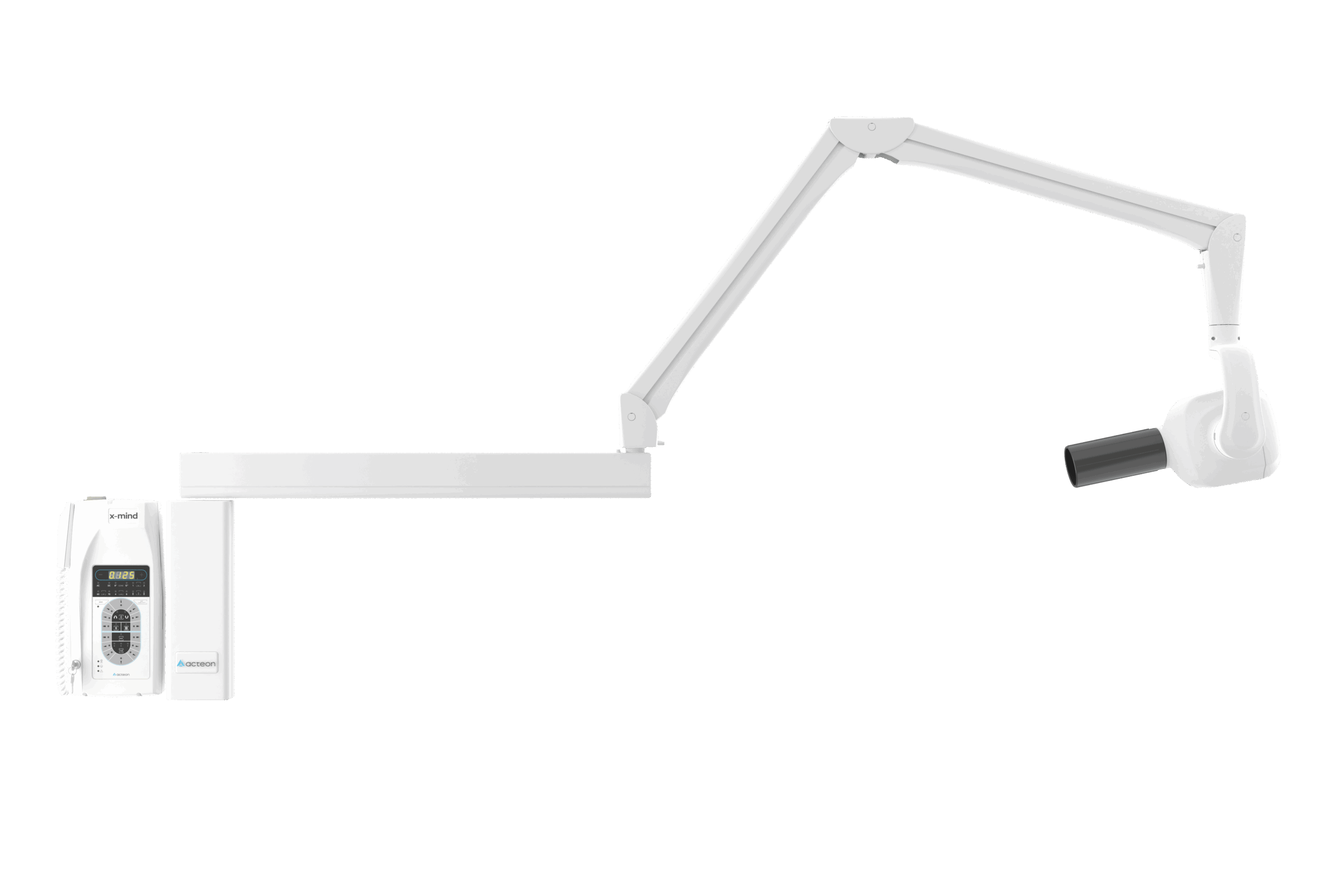

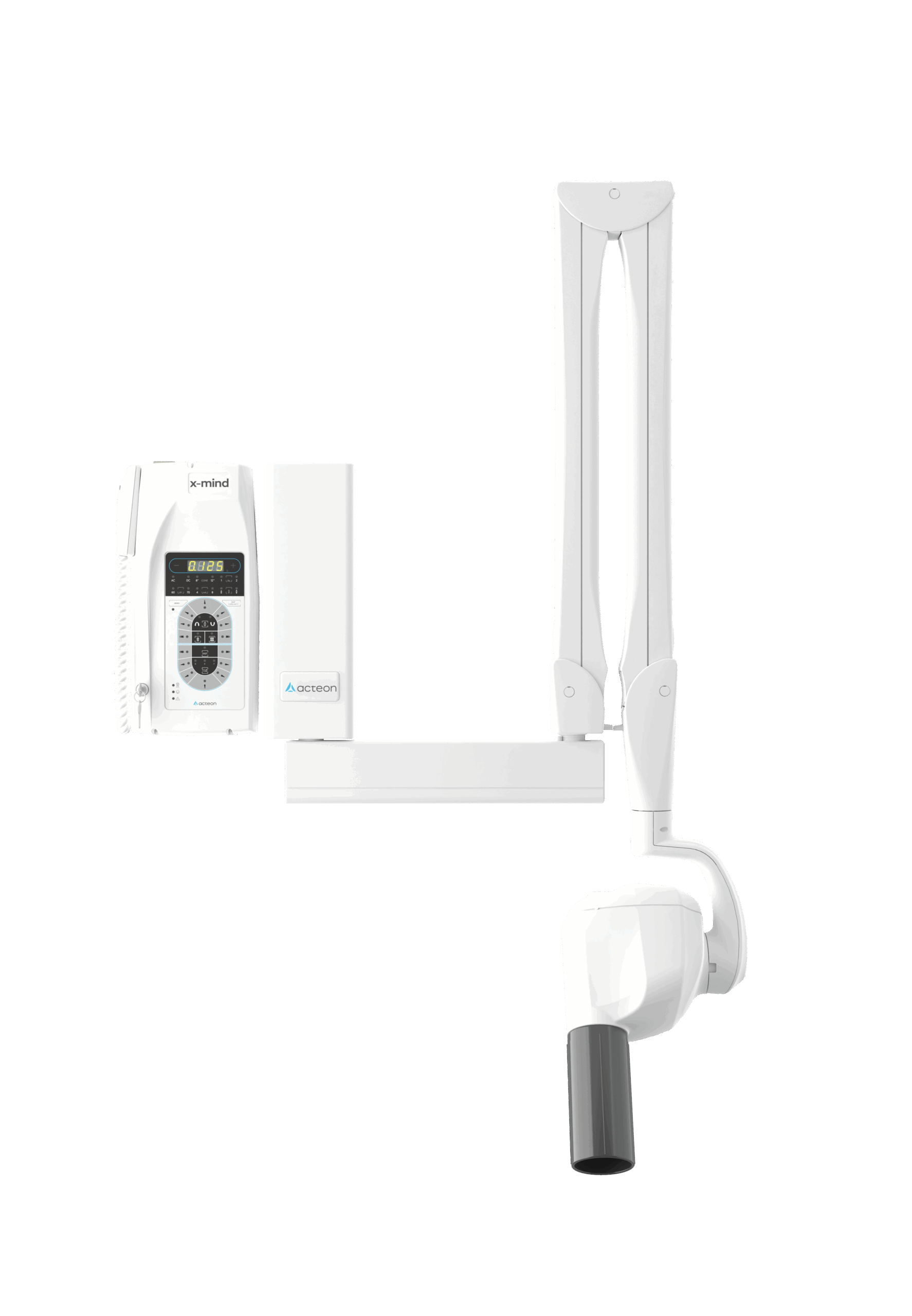

• Versatile Mounting Options: Available in top wall, bottom wall, dental unit, ceiling, and mobile configurations with three arm lengths (41 cm, 82.5 cm, and 110 cm) to suit various practice setups.
• Enhanced Safety Features: Dual beam limitation devices and an expansion chamber provide maximum protection for both patients and practitioners, ensuring safe and controlled radiation exposure.
• Smooth Operation: The X-ray head offers a 395° rotation around the vertical axis, facilitating easy and precise positioning during procedures.

Acteon X-Mind DC Intraoral Dental X-Ray Machine UK

The Acteon X-Mind DC is a high-frequency intraoral dental X-ray machine designed for modern UK dental practices. With reduced radiation exposure and full digital sensor compatibility, it provides clear, reliable diagnostics while supporting patient safety and regulatory compliance.

Technical Specifications

• Cones:
  • Circular Long Cone Ø 60 mm: 31 cm (12”)
  • Circular Short Cone Ø 60 mm: 20 cm (8”)
  • Rectangular Long Cone 45 x 36 mm: 31 cm (12”)
• Arms:
  • Wall Mounting Arms: 41 cm, 82.5 cm, or 110 cm
  • Ceiling Arm: Faro Ø 35 mm – Length 170 cm or 130 cm
  • Unit Arm: Faro Ø 60 mm or Ø 50 mm
  • Mobile Version: Height 110 cm, Length 80 cm, Width 70 cm
• Power Supply:
  • Voltage: 115/230 V – Monophase 50/60Hz
  • Power Absorption: 1.4 kVA
• X-ray Tube Voltage: 60-70 kV
• Anode Current: 4-8 mA
• Focal Spot: 0.7 mm
• Total Filtration: Equivalent to 2 mm Al at 70 kV
• Leakage Radiation: < 0.25 mGy/h
• Timer: 0.02 to 3.2 seconds
• Weight:
  • Head: 5.5 kg
  • Total: 25 kg

Warranty and Support

The Satelec X-Mind DC is covered by a comprehensive warranty, ensuring reliable operation and peace of mind for your practice. ACTEON® offers exceptional customer support, including technical assistance and scheduled maintenance services performed by qualified technicians. Annual maintenance is recommended to ensure the continued safe and efficient operation of the X-Mind DC.

Pricing and Options

The X-Mind DC offers excellent value with its advanced digital capabilities and enhanced safety features. Pricing is competitive, reflecting the high-quality performance and durability of the unit. Various configurations and optional accessories, such as a remote exposure switch and RX indicator light, are available to meet your practice’s specific needs. Contact our sales team for a personalized quote and to discuss the best configuration for your dental office.
